Purpose-Built Aerial Intelligence for Industrial Operations
At ARA Robotics, we proudly design, engineer, and manufacture our drones in Canada, ensuring reliability, performance, and security at every step.
40mins
Max Flight Time
45km/h
Wind Resistance
2.6kg
Max Weight
-40°C to 50°C
Operating Temperature
IP54
IP Rating
60mins
Max Flight Time
45km/h
Wind Resistance
5.3kg
Max Payload Weight
-40°C to 50°C
Operating Temperature
2.4GHz
Transmission Perimeter
6m/s
Ascent Speed
3m/s
Descent Speed
20m/s
Cruising Speed
RTK
PPK & Dual RTK Support
2.4GHz
Transmission Perimeter
6m/s
Ascent Speed
3m/s
Descent Speed
15m/s
Cruising Speed
RTK
PPK & Dual RTK Support
Up to 20G Resistant | Aerospace-Grade Connectors
<1.5 cm Accuracy with RTK Base Station
Up to 8 Hours of Continuous Flight Logging
Operating temperature -40°C to 50 °C
Optimized for Full Flight Automation & Multiple Modes
Flexible Fail-Safe Actions – Configurable In-Flight
Adaptive Geofencing Without Restrictive Boundaries
SKYMATE™ - Commercial Grade
Flight Controller
SKYMATE™ is an easy-to-use, commercial-grade flight controller, proven worldwide across a wide range of missions and environments. Purpose-built for operational efficiency, its factory-calibration ensures unprecedented navigation robustness with no need for on-site calibration. Equipped with dual RTK GNSS heading for superior resistance to interference and redundant GNSS/IMU systems for enhanced safety, SKYMATE™ delivers reliable performance in the most demanding conditions.
Built for transparency and reliability SKYMATE™ gives operators the confidence and control essential for mission-critical operations—where safety, data integrity, and continuity define success.
SKYMATE™
Advanced Control - Precise Navigation - Proven Reliability
ARA Robotics Proprietary Hardware and Firmware
Up to 20G Resistant | Aerospace-Grade Connectors
<1.5 cm Accuracy with RTK Base Station
Up to 8 Hours of Continuous Flight Logging
Operating temperature -40°C to 50°C
Optimized for Full Automation & Multiple Flight Modes
Flexible Fail-Safe Actions – Configurable In-Flight
Adaptive Geofencing Without Restrictive Boundaries
built in edge-computing
Real-Time Operational Intelligence for Critical Mining Operations
Reliable Detection and Tracking
A visible imaging camera combined with the AiM allows operators to detect, track, and quickly locate missing individuals during search-and rescue operations. Onboard infrared (IR) imaging further extends capabilities to environmental surveying, enabling responders to detect and localize hotpots during wildfire operations.
Reliable Detection and Tracking
A visible imaging camera combined with the AiM allows operators to detect, track, and quickly locate missing individuals during search-and rescue operations. Onboard infrared (IR) imaging further extends capabilities to environmental surveying, enabling responders to detect and localize hotpots during wildfire operations.
Advanced onboard processing for highly secure acquisition of RTK-georeferenced site data
The ARA405 features the Sensor Interface Computer (SIC), an onboard companion computer that supports diverse payload integrations. The SIC interfaces directly with payloads to validate data in flight, adjust configurations, and store georeferenced data onboard. Paired with the SKYCONTROL™ Ground Control Station, the ARA405 enables rapid, payload-specific mission creation for precise, high-quality data collection. Georeferenced data supports RTK positioning and exports in standard formats compatible with photogrammetry, LiDAR point cloud processing, and hydrographic surveying workflows.
Remote Operation Enabled Over a Secure Private Connection
Built for large-scale industrial operations, the ARA405 delivers real-time intelligence for mission-critical mining decisions. Flexible payload support enables rapid switching between photogrammetry, LiDAR, and inspection missions, maximizing coverage per flight. Integrated 4G LTE provides remote access, monitoring, and BVLOS-ready communication redundancy, turning aerial data into actionable insights for safer, more efficient mining operations.
Beyond Visual Line of Sight Operations Enabled by Redundant Communication Links
The Communication and Video Interface Computer (CVIC) provides on-demand communication redundancy with automatic switching between an onboard SIM card using LTE/4G and a ground-based radio frequency link, based on signal strength and prioritization. When combined with advanced mission planning capabilities in SkyControl, the ARA405 is designed to extend flight automation beyond the visual line of sight of the operator.
mission specific payloads
Smart Payload Integration. Simple User Experience.
.png)
Mapping - Inspection - Surveying
The Sony a7R V is a professional-grade imaging platform delivering exceptional resolution and precision, ideal for demanding mapping and inspection missions. When equipped with the optional 640×512 radiometric thermal sensor, the system enables dual-purpose RGB + thermal data acquisition, expanding mission versatility across both mapping and inspection applications.
-
Land Topography
-
Stockpile & Aggregates Inventory and Monitoring
-
Thermal Imagery
-
High-Resolution Data Capture
Sony a7R V
.png)
Surveying - Mapping - Forestry
Balko Technologies Connectiv System is a compact, high-performance LiDAR payload combining the XT32-M2X sensor and a 24 MP camera, delivering sub-3 cm accuracy. With lightweight design and triple-return LiDAR technology, it is optimized for precise surveying and environmental monitoring applications.
-
Land Topography
-
Stockpile & Aggregates Inventory and Monitoring
-
Powerline Vegetation Control
-
Forest Monitoring
Balko Connectiv - Hesai M2X APX15 with 24MP Camera
.png)
Bathymetry
ARA Robotics Echo Logger EU D24 is purpose-built for maritime and civil engineering projects, integrating an advanced 200 / 450 kHz acoustic bathymetric sensor with GNSS RTK positioning to deliver 5–10 cm vertical accuracy, fully compliant with IHO hydrographic standards.
-
Coastal & inland bathymetric surveying
-
Ports, harbors & maritime infrastructure
-
Civil engineering & dredging projects
-
Shallow water and restricted-access zones
-
Sediment monitoring & environmental studies
ARA Robotics Echologger EU D24
ACCESSORIES
Plug-and-Play Accessories for Effortless Operations.
The Doodle Labs Wearable Mesh Rider Radio is a compact, rugged device built for mission-critical field operations. With its IP68-rated design and Mesh Rider® waveform technology, it delivers secure, high-bandwidth connectivity in harsh environments. Offering multi-band support, Wi-Fi hotspot bridging, and AES-256 encryption, the Wearable ensures reliable team communications with low latency and extended range—all in a lightweight, portable form factor.
Portable Long Range Radio
.png)
The Lenovo Legion Go Handheld Controller is a user-friendly touch-screen device, built for efficiency. Designed for field operations, it provides up to 2 hours of continuous use on a single charge, ensuring reliable performance without interruption. With its intuitive interface and SkyControl™ GCS compatibility, the controller delivers seamless mission control in a compact, portable form factor.
All-in-one Controller
.png)

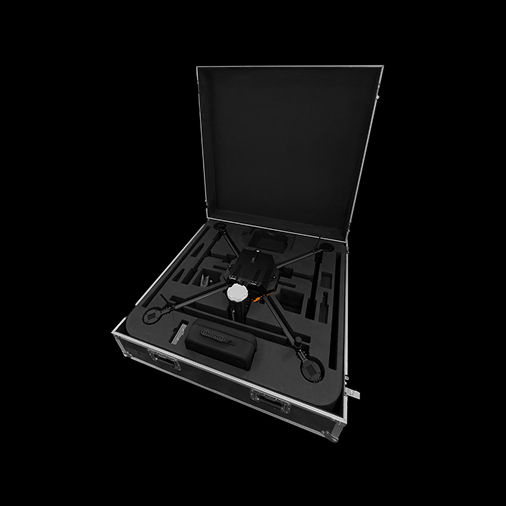

This custom ATA-style flight case is a rugged, professional-grade transport solution designed to protect sensitive equipment in demanding environments. Built with reinforced aluminum edging and steel ball corners, it delivers exceptional strength and impact resistance. The interior features custom-cut EVA foam for secure cushioning and shock absorption. Heavy-duty swivel caster wheels, spring-loaded handles, and locking butterfly latches provide smooth mobility, secure closure, and reliable handling. Durable hardware and reinforced construction ensure safe, versatile transport for mission-critical equipment.
Ruggedized Transport Case
Ground Control
Station software
Smart Control. Easy to Use
_gif.gif)
Fly - Monitor - Configure
Mobile View
Operate - Plan - Monitor - Configure - Extract
Desktop View
SKYCONTROL™ serves as the central hub for real-time monitoring, mission planning and configuration of your ARA drone. It provides key systems visualization, seamless integration on external networks and radios and ensures situation awareness via FPV and camera feed visualization. SKYCONTROL™ allows a single operator to manage multiples efficiently with automated safety protocols, while remaining user-friendly for rapid deployment in diverse mission contexts. Additionally, SKYCONTROL™ is deployable in two versions, one for PC and one for touch-screen handheld controllers.
